Heritage 251 Center Console

Specifications

Length

25' 3"

Beam

9' 3"

Horsepower

350HP

Fuel Tank

140gal

Dimensions & Weight

Length 25' 3"

Beam 9' 3"

Draft (up) 20"

Deadrise at Transom 21°

Approx. Dry Weight 4,672 lbs.

Approx. Bridge Clearance w/ Top 8' 9"

Approx. Bridge Clearance w/ Second Station Top 10' 3"

Capacities

Fuel Tank Capacity 140 gal.

Approx. Usable Fuel Capacity 128 gal.

Freshwater Tank Capacity 15 gal.

Person Capacity 12

Livewells 10 gal. (x2)

Console Cooler 68 qt.

Other

Max Horsepower 350HP

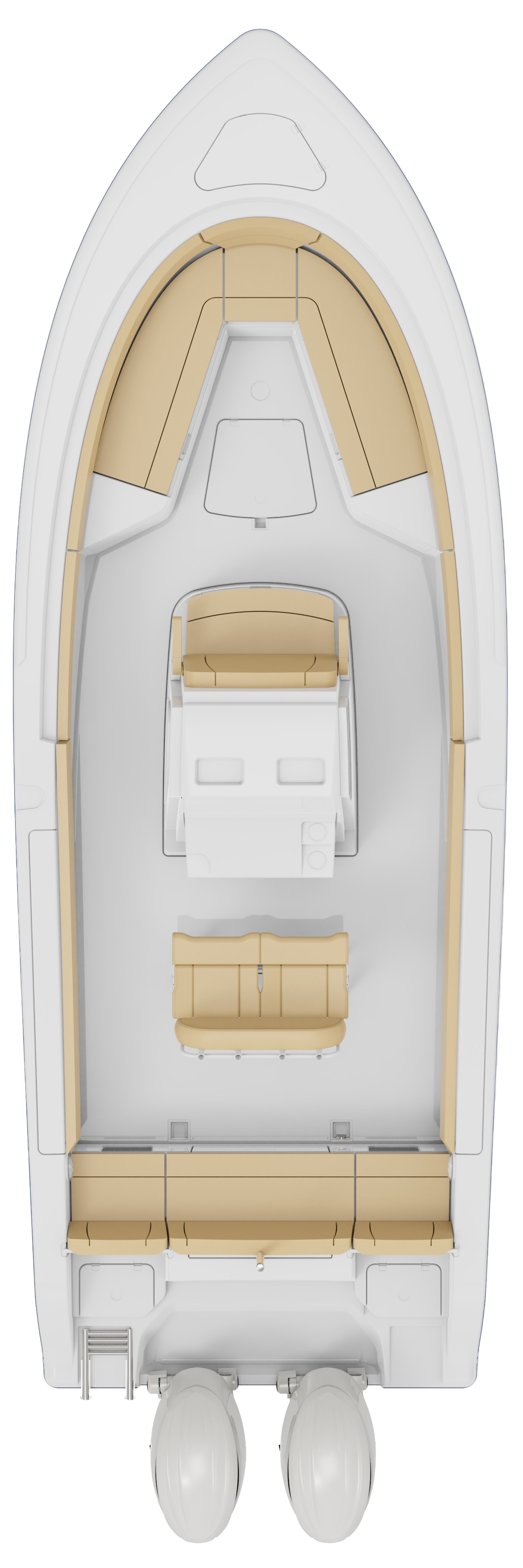

Overhead image of the 251-center-console

Length

25' 3"

Beam

9' 3"

Max Horsepower

350HP

Fuel Tank Capacity

140 gal.

Approx. Usable Fuel Capacity

128 gal.

Freshwater Tank Capacity

15 gal.

Livewells

10 gal. (x2)

Console Cooler

68 qt.

Draft (up)

20"

Deadrise at Transom

21°

Approx. Dry Weight

4,672 lbs.

Person Capacity

Approx. Bridge Clearance w/ Top

8' 9"

Approx. Bridge Clearance w/ Second Station Top

10' 3"

Frequently Asked Questions

Does the length include the engines or just the hull?

The length does not include engines. It is measured from the tip of the bow to the transom at the centerline of the boat.

Does the weight measurement include engines?

Due to this model being offered with many different engine packages, the engine weight is not included in the estimated weight. It also doesn't include fuel, water, gear or batteries.

What's the difference between tank capacity and usable fuel capacity?

Modern fuel systems require an air gap at the top of the tank to allow for expansion and contraction of fuel as temperatures fluctuate. This reduces the amount of fuel that can be fitted in the tank and is knows as ullage.

What does the "up" in Draft mean?

This denotes the amount of water the boat floats on with the engines "up" or completely out of the water.

What's the capacity of a Yacht Certified vessel?

All Sportsman Boats are NMMA Certified and under this certification boats over 26 feet are classified as Yacht Certified. This means that there is no explicit person capacity for this boat and it's the responsibility of the captain to operate within safe limits.

Notes

Some capacities shown are for optional items and may not be applicable to all boats.

Due to mandatory EPA regulations in fuel systems, usable fuel capacity can only be estimated and may not reflect real-world capacity.
