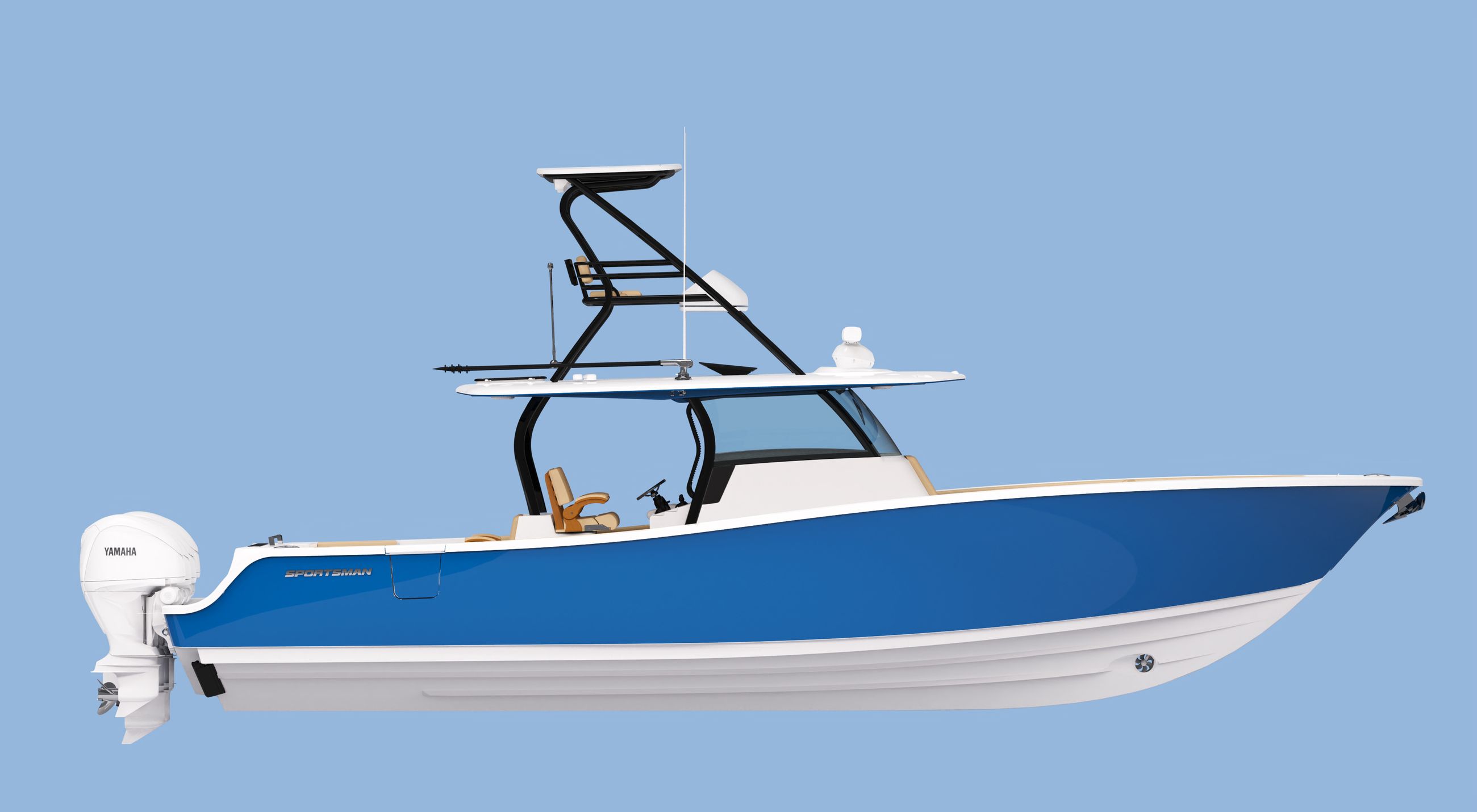

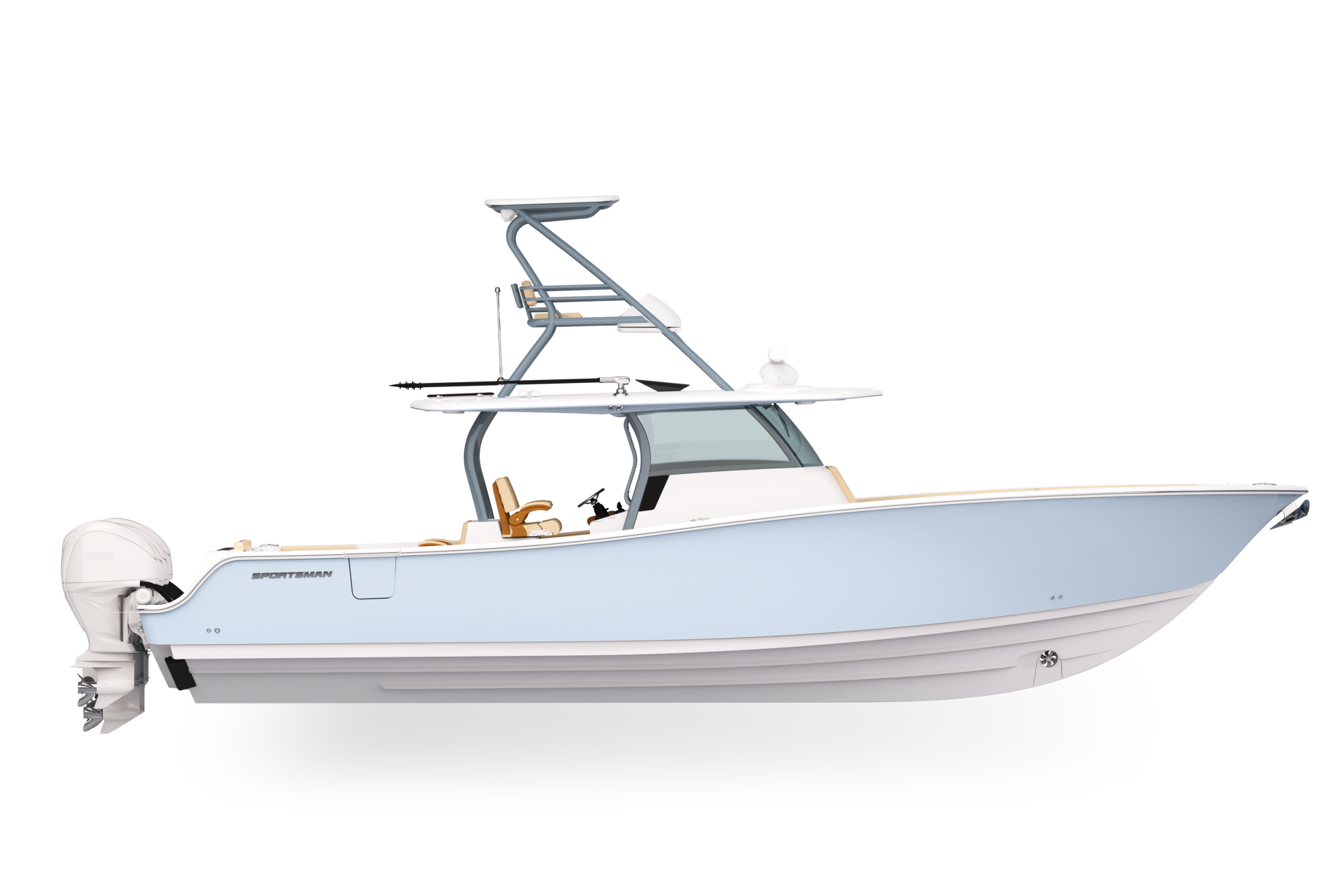

Open 402 Center Console

Specifications

Length

40' 4"

Beam

13'

Horsepower

1,700HP

Fuel Tank

650gal

Dimensions & Weight

Length 40' 4"

Beam 13'

Draft (up) 30"

Deadrise at Transom 23°

Approx. Dry Weight 19,436 lbs.

Approx. Bridge Clearance w/ Top TBA

Capacities

Fuel Tank Capacity 650 gal.

Approx. Usable Fuel Capacity 605 gal.

Diesel Capacity 25 gal.

Freshwater Tank Capacity 60 gal.

Yacht Certified Yes

Transom Pressurized Aquarium Livewells (x2) 40 gal.

In-Deck Fish Boxes 295 qt.

Other

Max Horsepower 1,700HP

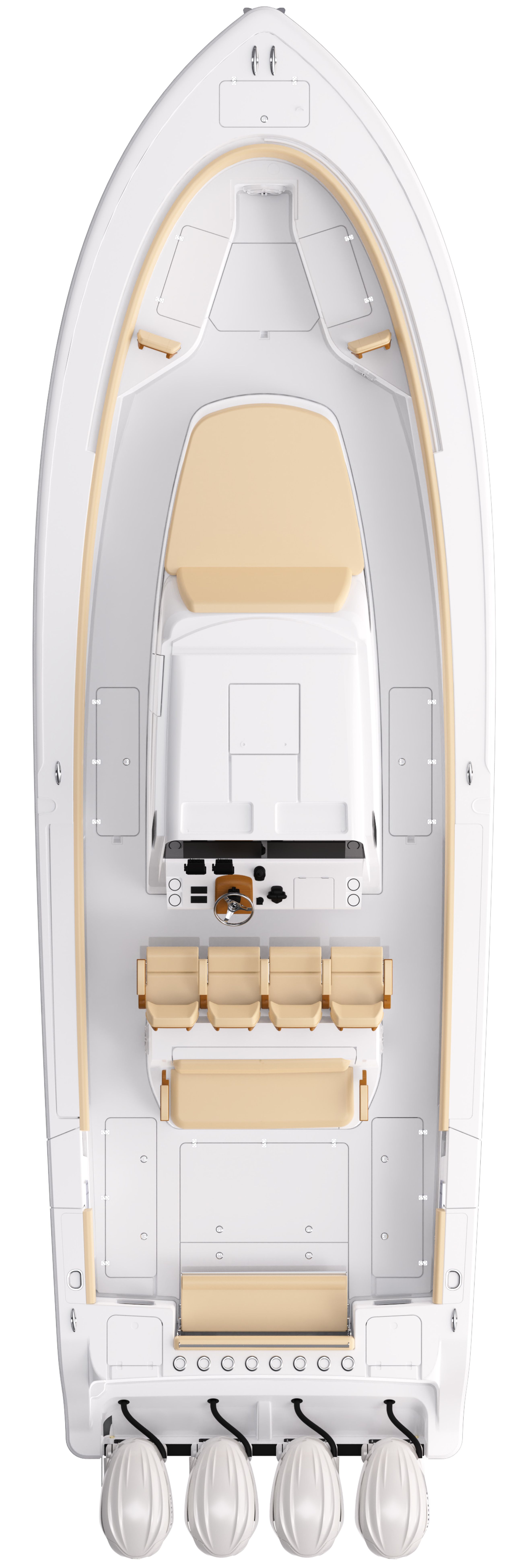

Overhead image of the 402-center-console

Length

40' 4"

Beam

13'

Max Horsepower

1,700HP

Fuel Tank Capacity

650 gal.

Approx. Usable Fuel Capacity

605 gal.

Diesel Capacity

25 gal.

Freshwater Tank Capacity

60 gal.

Transom Pressurized Aquarium Livewells (x2)

40 gal.

In-Deck Fish Boxes

295 qt.

Draft (up)

30"

Deadrise at Transom

23°

Approx. Dry Weight

19,436 lbs.

Approx. Bridge Clearance w/ Top

TBA

Yacht Certified

Yes

Frequently Asked Questions

Does the length include the engines or just the hull?

The length does not include engines. It is measured from the tip of the bow to the transom at the centerline of the boat.

Does the weight measurement include engines?

Due to this model being offered with many different engine packages, the engine weight is not included in the estimated weight. It also doesn't include fuel, water, gear or batteries.

What's the difference between tank capacity and usable fuel capacity?

Modern fuel systems require an air gap at the top of the tank to allow for expansion and contraction of fuel as temperatures fluctuate. This reduces the amount of fuel that can be fitted in the tank and is knows as ullage.

What does the "up" in Draft mean?

This denotes the amount of water the boat floats on with the engines "up" or completely out of the water.

What's the capacity of a Yacht Certified vessel?

All Sportsman Boats are NMMA Certified and under this certification boats over 26 feet are classified as Yacht Certified. This means that there is no explicit person capacity for this boat and it's the responsibility of the captain to operate within safe limits.

Notes

Some capacities shown are for optional items and may not be applicable to all boats.

Due to mandatory EPA regulations in fuel systems, usable fuel capacity can only be estimated and may not reflect real-world capacity.
